ROOFING & WALL CLADDING SYSTEMS

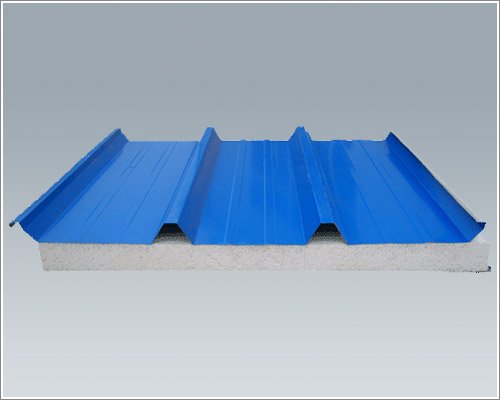

Star Profile & Co. Hi-Rib Roofing is a revolutionary new design in roofing systems. Trapezoidal in shape, these roofing are engineered to be totally lack-proof, capable or most efficient water drain out. Star Profile & Co. Hi-Rib Roofing is lightweight, yet its boald, wide span with 30 mm rib depth and one stiffener ribs makes it the strongest profile in its category, its full side-lap, configuration ensures extra strength at panel overlap & better weather tightness.

TECHNICAL SPECIFICATION

Providing & Fixing of Star Profile & Co. Hi-Rib Roofing /wall cladding system made out of Galvanised steel/ Galvalme/Aluminium, permanently colour coated, profiled sheet with Hi-Rib depth of 30 mm at minimum 203 mm pitch distance cover purlins and fixed with self drilling galvanised fasteners. Star Profile & Co. Hi-Rib Sheet comes with profiled width of 1090 mm & cover width of 1015 mm.

Profiled sheet shall be roll formed out of desired material (viz. galvanized steel. Galvalure or aluminium) of desired thickness & paint finish. (Please refer technical data for choise).

The sheet shall be fixed over the purlins with hexagonal head self-drilling fasteners including Neoprene/EPDM washers on each crust of sheet. The fasteners are fixed mechanically using electrical tools through crests & troughs.

 You can download specification sheet from below link---

Sheet Specification.pdf Sheet Specification.pdf
Size : 32.953 Kb
Type : pdf

Features

Star Profile & Co. Hi-Rib Roofing system is-

  • Combination of both, high strength and corrosion resistance with the least maintenance cost.
  • Easy & faster to install, thereby cutting down on project – time.
  • Light weight, thereby putting lesser load on structure.
  • Weather proof
  • Offer wide range of design choices
  • Aesthetically good looking
  • Fire resistant
  • Eco friendly
  • Better scrap value

Applications

Star Profile & Co. Roofing and cladding system has found wide applications in:
  • Aircrafts Hangers
  • Bus Terminals
  • Factory Sheds
  • Metro Stations
  • Other miscellaneous structures
  • Petrol Pump canopies
  • Power plants
  • Pre Fabricated Structures
  • Railway Stations
  • Super Markets
  • Ware Houses
  • Workshops
